Products > Graphic LCD > 128X128 > 128X128 Graphic LCD Ultra wide lcd lcd digital signage lcd monitor with rca video input
|
Product name : 128X128 Graphic LCD Ultra wide lcd lcd digital signage lcd monitor with rca video input
Product No. : ENH-DG128128-02
|
| Details: | ||||||||||||||||||||||||||

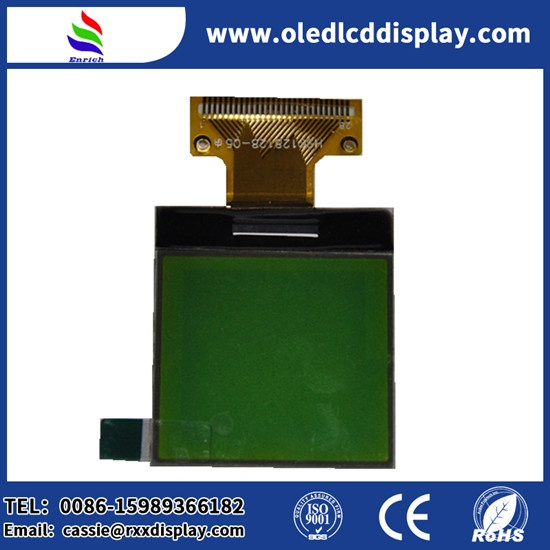

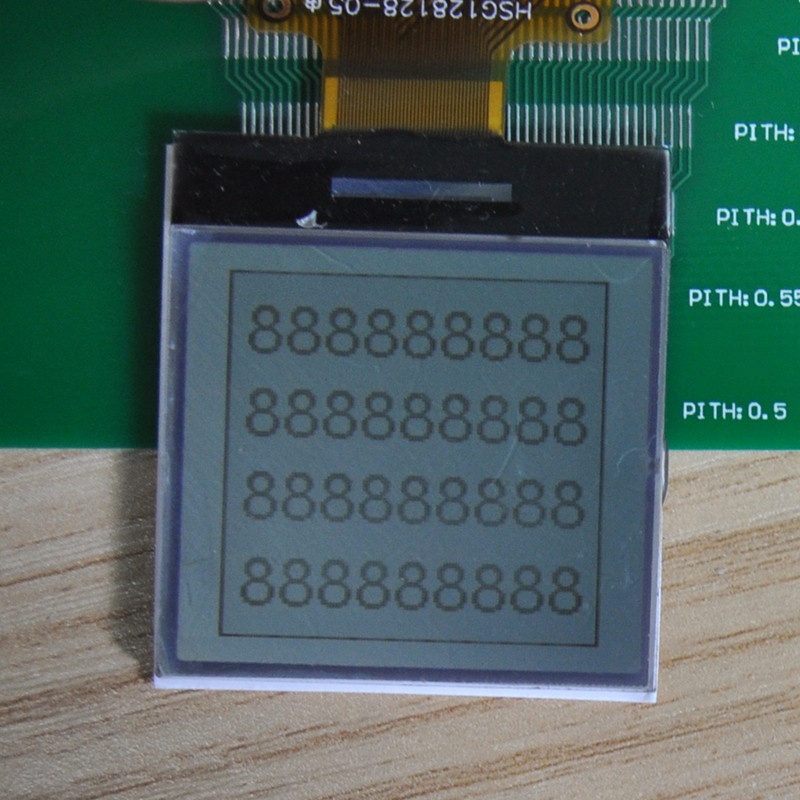

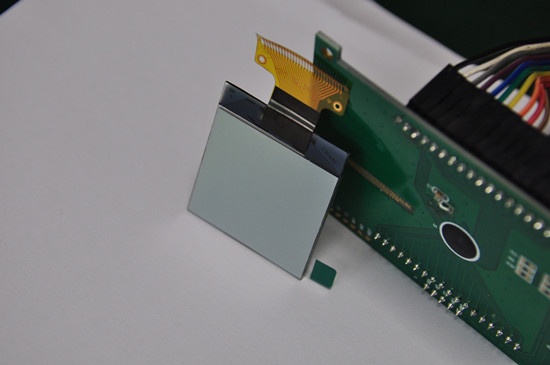

This is the 128X128 dot matrix LCD module,STN,Yellow-Green film,ST7541
|
| 1.Product name : | ENH-DG1280128-02 |
| 2.Size: | 35.6*33.3mm |
| 3.Viewing area : | 32.6*30.3mm |
| 4.Active area : | 26.86*26.86mm |
| 5.Resolution: | 128*128 |
| 6.Display type : | STN/Transflective/Positive |
| 7.Viewing angle: | 12 O'clock |
| 8.Drive method : | 128/ duty, 1/12 bias |
| 9.Working temp : | -20℃~+70℃ |
| 10.Storage temp : | -30℃~+80℃ |
| 11.Connector: | COG+FPC |
| 12.Drive IC : | ST7541 |
| 13.Backlight : | replaceable |

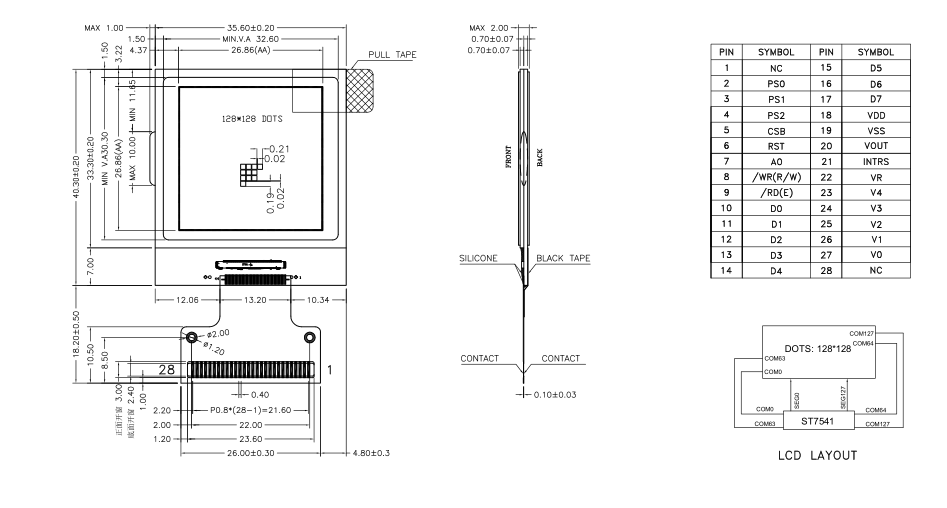

Display drawing
Packing shipping
We cooperate with DHL ,UPS,FEDEX, TNT，EMS,HongKong Post and Singapore
Post for shipment and choose the most appropriate one for the destination .
Sample in stock : <50 pcs, 1-3 working days;
50-1000pcs, 20 working days;
1000-5000pcs, 30 working days;
5000-30000pcs, 35 working days;
Post for shipment and choose the most appropriate one for the destination .
Sample in stock : <50 pcs, 1-3 working days;
50-1000pcs, 20 working days;
1000-5000pcs, 30 working days;
5000-30000pcs, 35 working days;
