Products > Graphic LCD > 212X64 > Graphic LCD 212x64 matrix display FPC socket connecting for remote control

Product name : Graphic LCD 212x64 matrix display FPC socket connecting for remote control

Product No. : ENH-DG212064-01

Online Inquiry Email Us

Details:

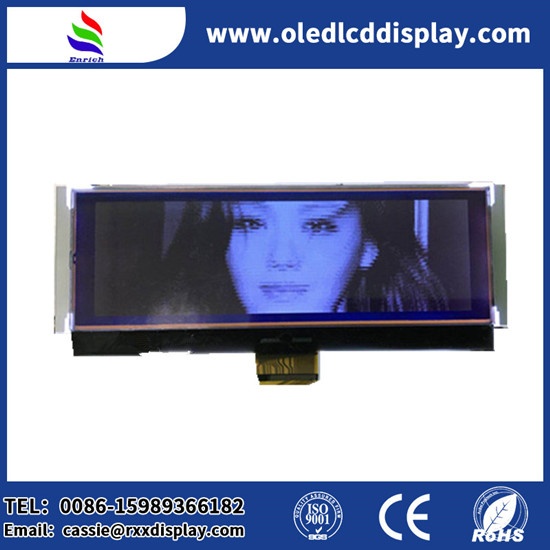

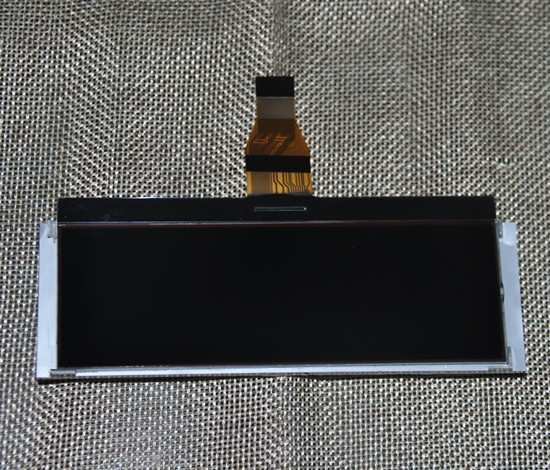

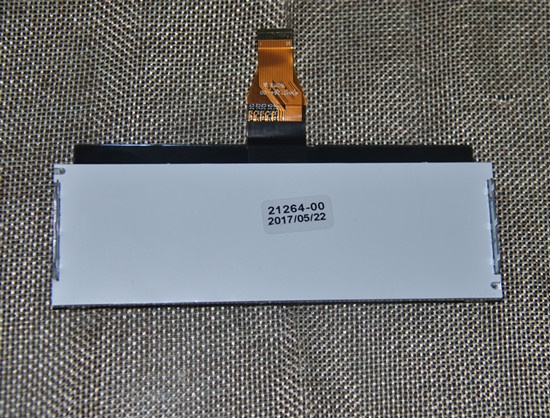

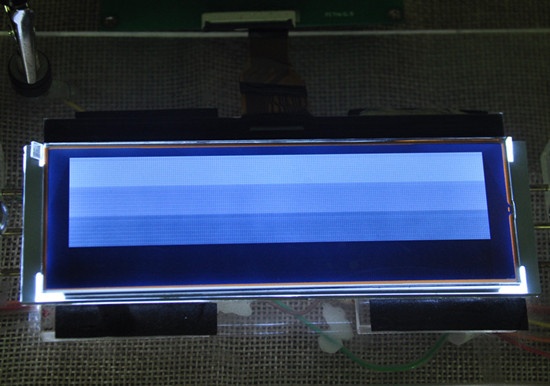

This is the 212X64 graphic LCD display,chip on glass,FSTN
Transflective Positive type screen ,6 O'clock viewing angle,
UC1611S controller IC,white and blue led backlight.

1.Product name :	ENH-DG21264
2.Size:	124*45.5mm
3.Viewing area :	108*35mm
4.Active area :	101.74*30.70mm
5.Resolution:	212*64
6.Display type :	DFSTN/Transflective/Positive
7.Viewing angle:	6 O'clock
8.Drive method :	1/64 duty, 1/9 bias
9.Working temp :	-20℃~+70℃
10.Storage temp :	-30℃~+80℃
11.Connector:	COG+FPC
12.Drive IC :	UC1611S
13.Backlight :	Blue and white backlight

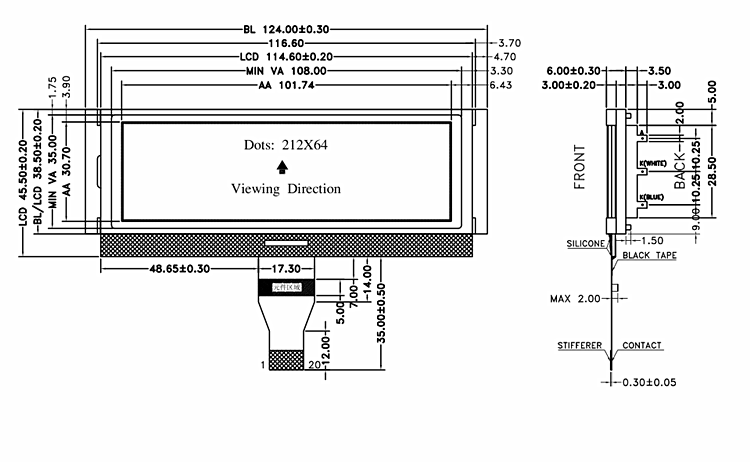

Display Drawing:

Packing shipping

We cooperate with DHL ,UPS,FEDEX, TNT，EMS,HongKong Post and Singapore
Post for shipment and choose the most appropriate one for the destination .

Sample in stock : <50 pcs, 1-3 working days;
50-1000pcs, 20 working days;
1000-5000pcs, 30 working days;
5000-30000pcs, 35 working days;
