Products > Segment LCD > > Custom TN Segment LCD COB Module Chip On Board

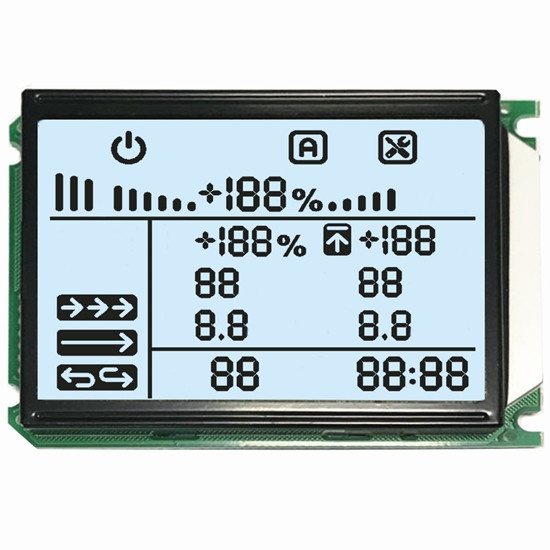

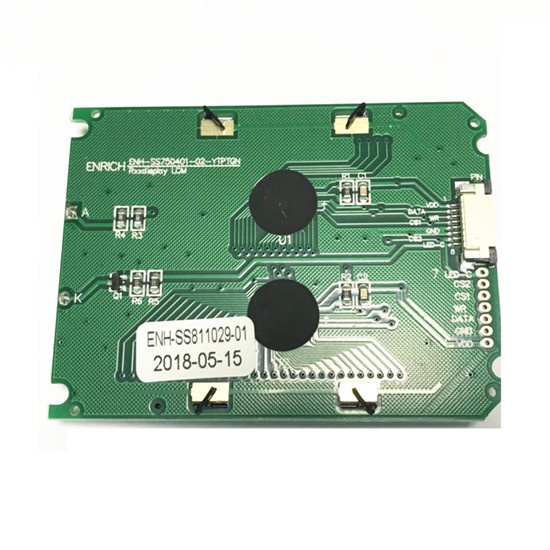

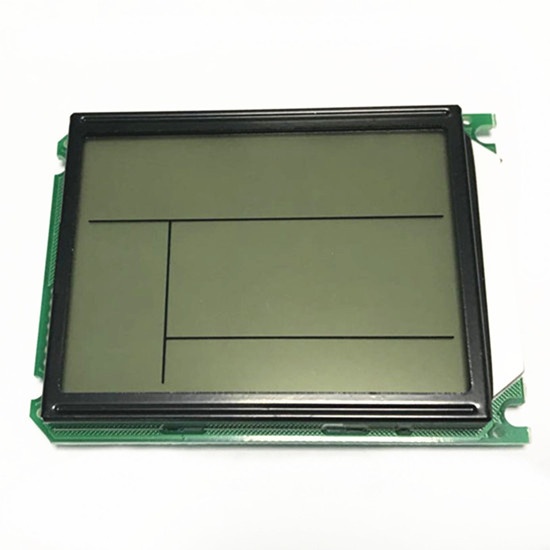

Product name : Custom TN Segment LCD COB Module Chip On Board

Product No. : ENH-SS811029-01

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

This is the TN segment LCD display with HT1621 Controller.We can customize according to your design.

1.Product name :	ENH-SS811029-01
2.Size:	76.0x56.40mm
3.Viewing area :	60.0x44.0mm
4.Working voltage	3.3V
5.Resolution:	7 Segment lcd
6.Display type :	TN//Positive/Reflective
7.Viewing angle	3 O'clock
8.Drive method :	1/4duty, 1/3bias
9.Working temp :	0℃~+50℃
10.Storage temp :	-10℃~+60℃
11.Connector:	Zebra
12.Drive IC :	HT1621*2
13.Backlight :	White,3 pcs leds

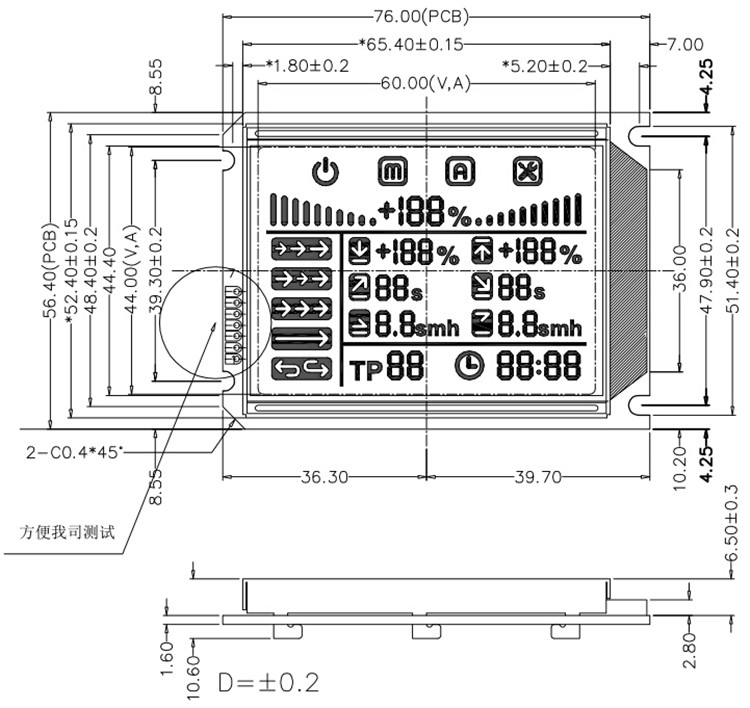

Display drawing:

Packing shipping

We cooperate with DHL ,UPS,FEDEX, TNT，EMS,HongKong Post and Singapore
Post for shipment and choose the most appropriate one for the destination .

Sample in stock : <50 pcs, 1-3 working days;
50-1000pcs, 20 working days;
1000-5000pcs, 30 working days;
5000-30000pcs, 35 working days;
